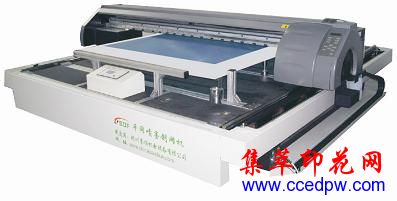

平网喷墨制网机 (SDPW3518)
-
SDPW-A-3518平网喷墨制网机
SDPW系列平网喷墨系统
概述：
SDPW系列电脑一体化喷墨制网系统，该产品采用先进的技术、是在激光照排感光原理
基础上，开发出的一种新型的制网设备 ，在降低使用成本和环保的要求下 ，已经成为激光照排设备理想的升级换代产品。喷墨制网机产品制网过程十分简便，制网机读取经电脑分色处理生成的图象文件后 ，用本公司专用喷墨打印软件进行工艺处理和排版 ， 驱动喷墨打印头在涂有感光胶的平网上打印花型图案，经感光晒网后即可获得生产用的网版。
SDPW平网喷墨制网系统特点：
1．低成本：采用喷墨直接制网，无须其它中间介质 ，直接获取生产用平网。同时，喷墨制网液成本较低，可大大节约制网开支。经测算，制网的成本在每平方8元以内(注：满幅需要12毫升溶剂，常规需要6毫升左右)。
2．高精度：SDPW系列喷墨制网机产品采用高精度交流伺服系统，打印定位精度高达0.015毫米；采用热发泡式微粒爆发喷墨头，制网精度为300DPI/600DPI可选 ， 采用压电式喷墨打印头，制网精度为360DPI/540DPI/720DPI/1080DPI/1440DPI可选，满足所有印花和印刷丝网的制网要求，可实现高精度的云纹、细线条等图案，提高产品品质，减少胶片曝光的网点损失，同时解决拼版问题。
3．速度快：SDPW系列喷墨制网机制网产品制网速度较传统设备大幅提高，达4分钟/平方米。
4.多功能：提供彩色打印功能，满足小批打样需求。
SDPW-A系列平网喷墨制网机技术特性
制网分辩率：360DPI/540DPI/720DPI/1080DPI/1440DPI 五种精度可选
重复精度：0.015MM
喷头扫描运动：全伺服系统闭环控制
喷头：高精度压电式喷墨头（双喷）
制网速度：平均4分钟/平方米（360DPI）
可读文件格式：标准TIFF和各种矢量图文格式
接口条件：以太网10Base-Tor,100Base-TX或双向并行接口可选。
供墨系统：连续供墨系统
操作环境:
温度：15~32°C 湿度：35%-80%（非凝结状态）
电源：220V、50HZ
适用范围：布匹印花、皮革印花、玻璃印花，钢板印花、陶瓷花纸、丝网印刷等。
SDPW-A系列高精度平网喷墨制网机规格尺寸
序号
机型
有效喷印面积（MM）
外 形 尺寸（MM）
（长*宽*高）
功 率
（千瓦）
重 量
（公斤）
1
SDPW3518
3500X1800
4100 X2700 X1000
3
900
SDPW SERIES PLANE SILK SCREEN INK-JET SYSTEM
Outline：
1. SDPW Series plane silk screen Ink-jet system,useed advanced techonllogy ,Is in the laser illumination photosensitivity principle foundation, Develops one new system manufacture silk screen equipment., In reduces the use cost and under the environmental protection request, Already became the laser illumination equipment quite ideally to turn to a new generation the product.
2. The SDPW series the ink-jet system makes the silk screen machine product system make screen process to be extremely simple, The system plane silk screen machine read after computer minute color processing, Special-purpose spurts the ink printing software after this company to carry on craft processing and the typesetting, The actuation spurts ink printing in to spread has on the photosensitivity rubber even net to hit the dye printing design. Exposes to the sun the net after the photosensitivity, Then to obtain the screen which the production uses.
3. Uses spurts the ink direct make screen, Does not need other middle medium, Simultaneously, Spurts the ink system screen fluid cost to be low, But big political integrity limit net expenditure, After reckoning, Screen cost in each square 10 Yuan.
4. SDPW Series plane silk screen spray-ink machine product to use the high accuracy A.C. servomechanism, The printing pointing accuracy reaches as high as 0.015 millimeter ,Uses becomes spongy -like the particle eruption to spurt the ink technology hotly to spurt the ink head , The screen precision is 300DPI/600DPI may elect ,The piezoelectricity type spurts the ink printing head, The screen precision is 720DPI/1440DPI may elect, Satisfies all dye printing and prints the silk screen the system network request
5. SDPW have higher speed of making net than old making net equipments, one square need 6 minute .
6. While can print coloure picture , inorder to making samples .
7. SDPW WORKING FLOW:
Computer color software→color image document（Single color）→Spurts the ink screen system→Spurts the black solvent printing ink →Plane silk screen（Has spread the photosensitive rubber）→Exposure→Flushing→Completes the manufacture plane the silk screen
Common technical characteristic:
Distinguish rate
720DPI/1440DPI（Piezoelectricity nozzle）
Redundant precision
：0.015MM
Nozzle scanning movement
Entire servo closed-loop control
Nozzle
The high speed hot foaming nozzle and the piezoelectricity type spurts ink to be possible to elect
speed
Average 4 minutes/square meters (piezoelectricity nozzle)
May read the document format
Standard TIFF and each kind of vector chart article form
Connection condition
High speed bidirectional ECP and mouth
For ink system
Greatly supplies the ink system continuously
Operating environment
15~35°C 10%-70% Relative humidity (non-congealment condition)
Power source
220V、50HZ
The SDPW even net spurts the ink plane silk screen machine specification size”
Serial number
Model
Spurts the plane area effectively
External dimensions （MM）
Power（KW）
Weight （KG）
3
SDPW3518
3500X1800
4100 X2700 X1000
2.5
900
(The special specification can make to order
